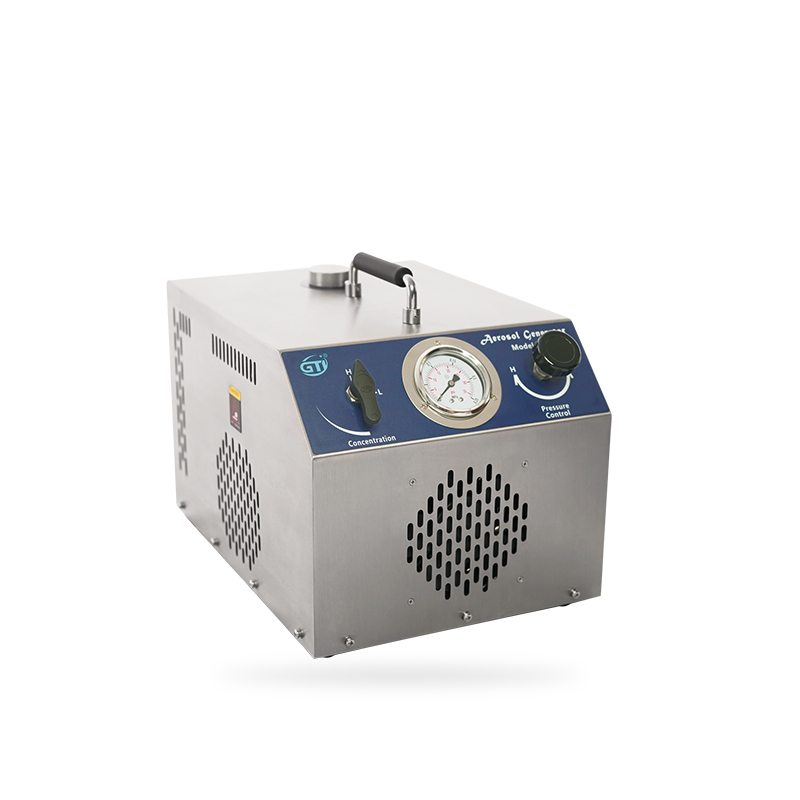

Aerosol Generator Model 3990-03 (Built-in Compressor)
The Model 3990-03 is a portable compact aerosol generator, which an on-hoard air compressor supplies the necessary pressure for producing a poly-disperse oil aerosol. No other attaching air source requested.
This aerosol generator providing a wide range of aerosol concentrations, it’s recommended for testing systems with air-flows of 2,000 cfm (3396 m³/h) and lower. It is ideal for workstations, small or portable clean-rooms, bio-safety cabinets, ceiling modules, or HEPA filter units in installation where an adequate supply of clean, compressed air is readily available.
The generator combining with aerosol concentration tester (Photometer or Particle Counter) are used to integrity test or locate leaks in high efficiency air filtration systems by comparing the aerosol concentration between upstream and downstream of the test system.
- GTI
- China
Details

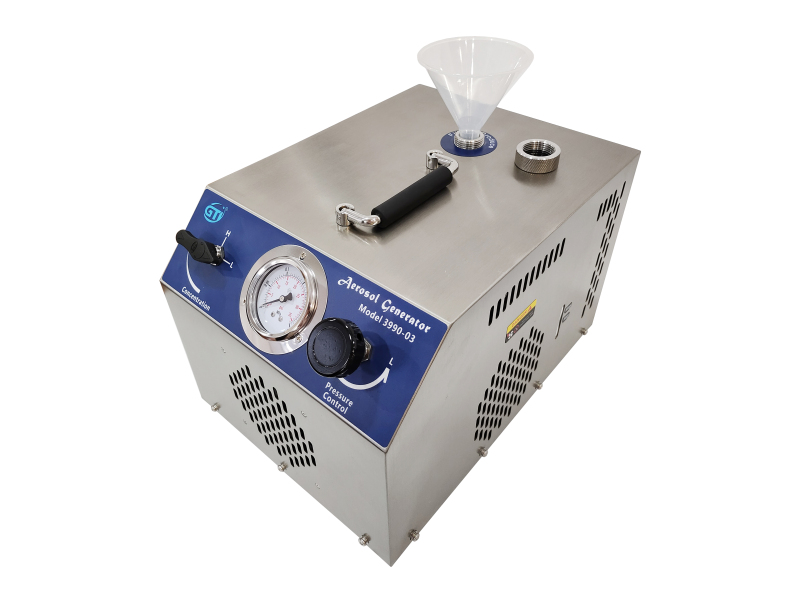

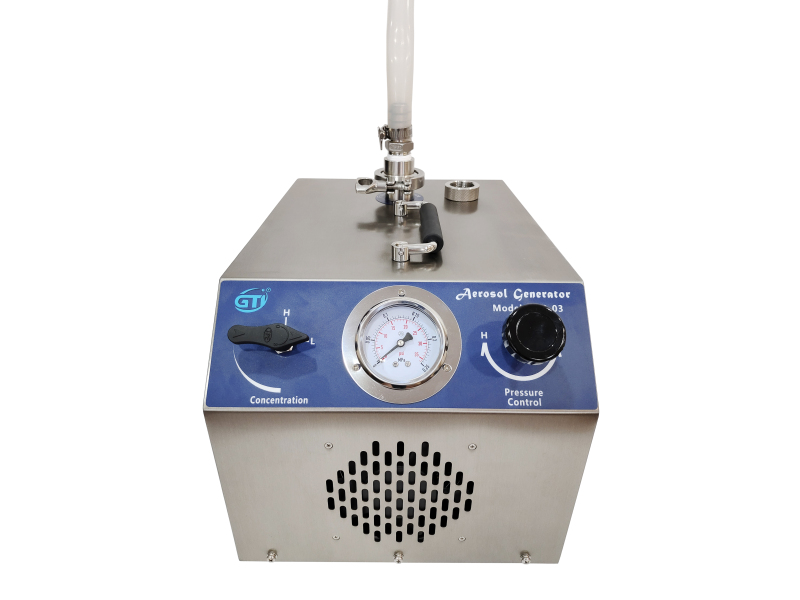

Aerosol Generator Model 3990-03(Laskin-Nozzle)
Product Overview
The Model 3990-03 is a portable compact aerosol generator, which an on-hoard air compressor supplies the necessary pressure for producing a poly-disperse oil aerosol. No other attaching air source requested.
This aerosol generator providing a wide range of aerosol concentrations, it’s recommended for testing systems with air-flows of 2,000 cfm (3396 m³/h) and lower. It is ideal for workstations, small or portable clean-rooms, bio-safety cabinets, ceiling modules, or HEPA filter units in installation where an adequate supply of clean, compressed air is readily available. The generator combining with aerosol concentration tester (Photometer or Particle Counter) are used to integrity test or locate leaks in high efficiency air filtration systems by comparing the aerosol concentration between upstream and downstream of the test system.
Applications
Bio-safety cabinets, ceiling modules, small or portable clean-rooms, small HEPA filter units
ULPA, HEPA filter manufacturers
Leak testing when filter installation
Other applications for aerosol generator
Key Features & Benefits
Specifications
PERFORMANCE & PRODUCT SPECIFICATIONS | |
Airflow Range | 50- 2000 cfm |
Aerosol Concentration | 100µg / L@ 200cfm 10µg / L@ 2000 cfm |
Nozzles Selection | L(low) / H(high) |
Size（L x W x H） | 38cm×27cm×26cm |
Weight | 18.5 kg |
Power Source | 100～125V 60Hz 4A. or 210～235V 50Hz 2.5A |
Fuse | 5×20mm，10A |
Aerosol Reagent | PAO-4, DOS, Ondina EL, DOP, Mineral oil, Paraffin or Corn Oil liquid aerosol reagent. |
Duty Cycle | Intermittent on/off; or less than 1 hour |
Ambient Temperature | 5～40℃ |
Ambient Pressure | Standard Atmosphere |
Ambient Humidity | 5%～85%RH |
Storage requirements | 25℃～55℃ |

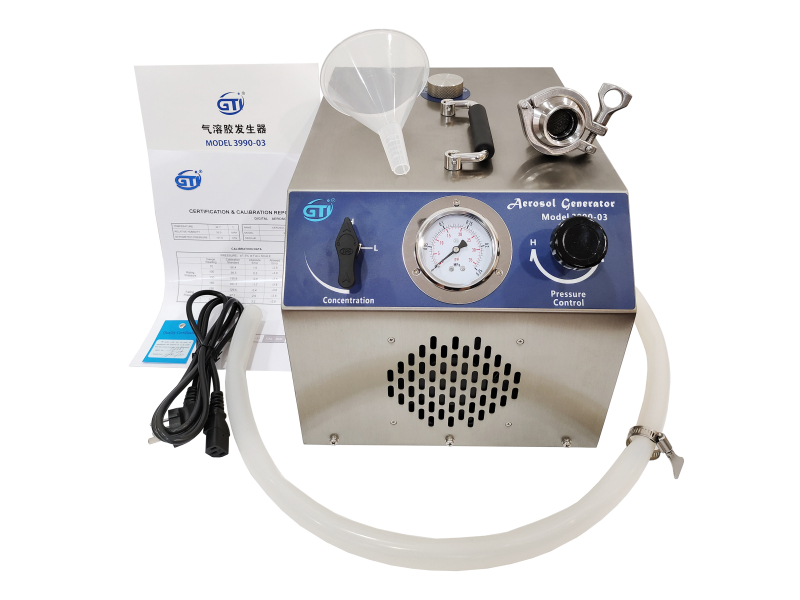

Packing List
Items | Quantity |
Master (with potable handle) | 1 |
Power Cable | 1 |
Clamp | |
Silicone gasket | 1 |
Upper Chucking | 1 |
Under Chucking | 1 |
Hose Clamp | 1 |
Instruction Manual | 1 |
More info, click the youtube GTI 3990-03
